실린터 컨넥터 | GLAND

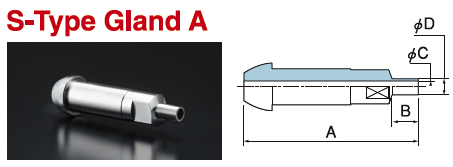

S-Type Gland A

Unit(mm)

Part No.	A	B	C	D
GL06S	65.30	10.00	4.35	6.35
GL08S	65.30	10.00	4.35	6.35

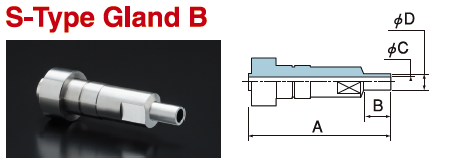

S-Type Gland B

Unit(mm)

Part No.	A	B	C	D
GL01S	52.50	10.00	4.35	6.35
GL02S	55.50
GL03S	58.00
GL07S	66.06
GL10S	66.70
GL11S	55.50

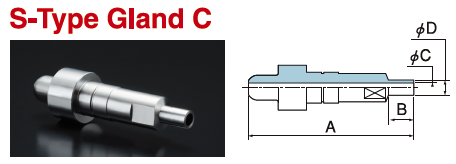

S-Type Gland C

Unit(mm)

Part No.	A	B	C	D
GL04S	66.20	10.00	4.35	6.35
GL05S	66.80
GL09S	66.70

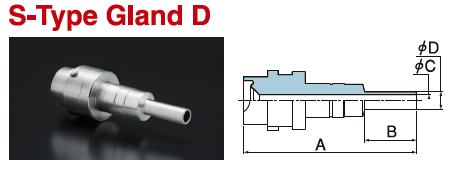

S-Type Gland D

Unit(mm)

Part No.	A	B	C	D
632-GL	63.8	19.05	4.35	6.35
634-GL
636-GL
638-GL
640-GL
642-GL
712-GL
714-GL
716-GL
718-GL
720-GL
722-GL
724-GL
726-GL
728-GL
