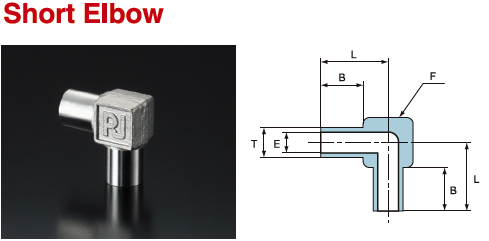

Short Elbow
Unit(mm)
| T(inch) | Part No. | B | E | F Wrench Flat |
L |
|---|---|---|---|---|---|
| 1/4 | P4S06-9 | 10.00 | 4.35 | 10.00 | 15.00 |
| 3/8 | P6S06-9 | 10.00 | 7.53 | 12.00 | 16.00 |
| 1/2 | P8S06-9 | 10.00 | 10.22 | 16.00 | 18.00 |
용접 피팅 | Short Type

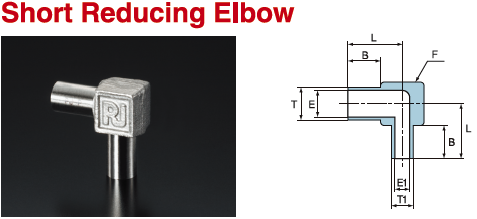

Short Reducing Elbow
Unit(mm)
| T(inch) | T1(inch) | Part No. | B | E | E1 | F Wrench Flat |
L |
|---|---|---|---|---|---|---|---|
| 3/8 | 1/4 | P6S06-9-4 | 10.00 | 7.53 | 4.35 | 12.00 | 16.00 |
| 1/2 | 1/4 | P8S06-9-4 | 10.00 | 10.22 | 4.35 | 16.00 | 18.00 |
| 1/2 | 3/8 | P8S06-9-6 | 10.00 | 10.22 | 7.53 | 16.00 | 18.00 |

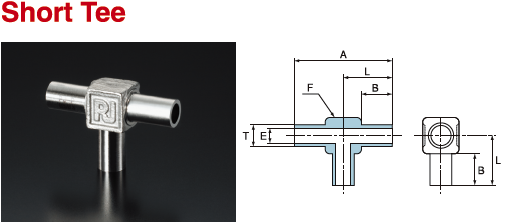

Short Tee
Unit(mm)
| T(inch) | Part No. | A | B | E | F Wrench Flat |
L |
|---|---|---|---|---|---|---|
| 1/4 | P4S06-3 | 30.00 | 10.00 | 4.35 | 10.00 | 15.00 |
| 3/8 | P6S06-3 | 32.00 | 10.00 | 7.53 | 12.00 | 16.00 |
| 1/2 | P8S06-3 | 36.00 | 10.00 | 10.22 | 16.00 | 18.00 |

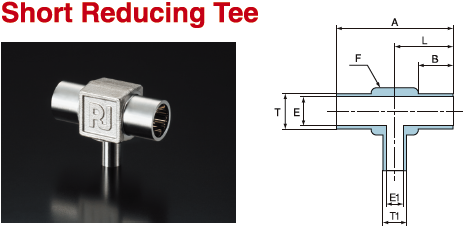

Short Reducing Tee
Unit(mm)
| T(inch) | T1(inch) | Part No. | A | B | E | E1 | F Wrench Flat |
L |
|---|---|---|---|---|---|---|---|---|
| 3/8 | 1/4 | P6S06-3-4 | 32.00 | 10.00 | 7.53 | 4.35 | 12.00 | 16.00 |
| 1/2 | 1/4 | P8S06-3-4 | 36.00 | 10.00 | 10.22 | 4.35 | 16.00 | 18.00 |
| 1/2 | 3/8 | P8S06-3-6 | 36.00 | 10.00 | 10.22 | 7.53 | 16.00 | 18.00 |

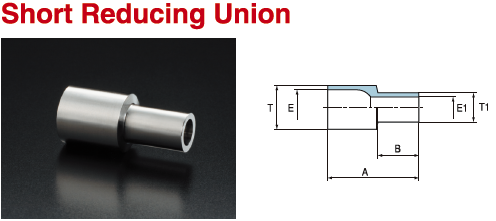

Short Reducing Union
Unit(mm)
| T(inch) | T1(inch) | Part No. | A | B | E | E1 |
|---|---|---|---|---|---|---|
| 1/4 | 1/8 | P4S06-6-2 | 21.00 | 10.00 | 4.35 | 1.75 |
| 3/8 | 1/4 | P6S06-6-4 | 21.00 | 10.00 | 7.53 | 4.35 |
| 1/2 | 1/4 | P8S06-6-4 | 21.00 | 10.00 | 10.22 | 4.35 |
| 1/2 | 3/8 | P8S06-6-6 | 21.00 | 10.00 | 10.22 | 7.53 |

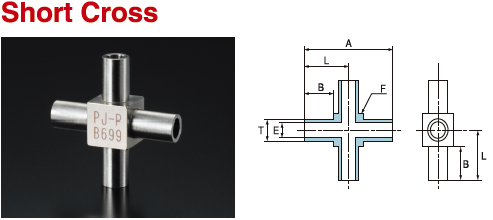

Short Cross
Unit(mm)
| T(inch) | Part No. | A | B | E | F Body Cube |
L |
|---|---|---|---|---|---|---|
| 1/4 | P4S06-4 | 30.00 | 10.00 | 4.35 | 10.00 | 15.00 |
| 3/8 | P6S06-4 | 32.00 | 10.00 | 7.53 | 12.00 | 16.00 |
| 1/2 | P8S06-4 | 36.00 | 10.00 | 10.22 | 16.00 | 18.00 |
